Products – Dr.J AAC

DR. J Autoklav AAC Products

DR.J Autoklav

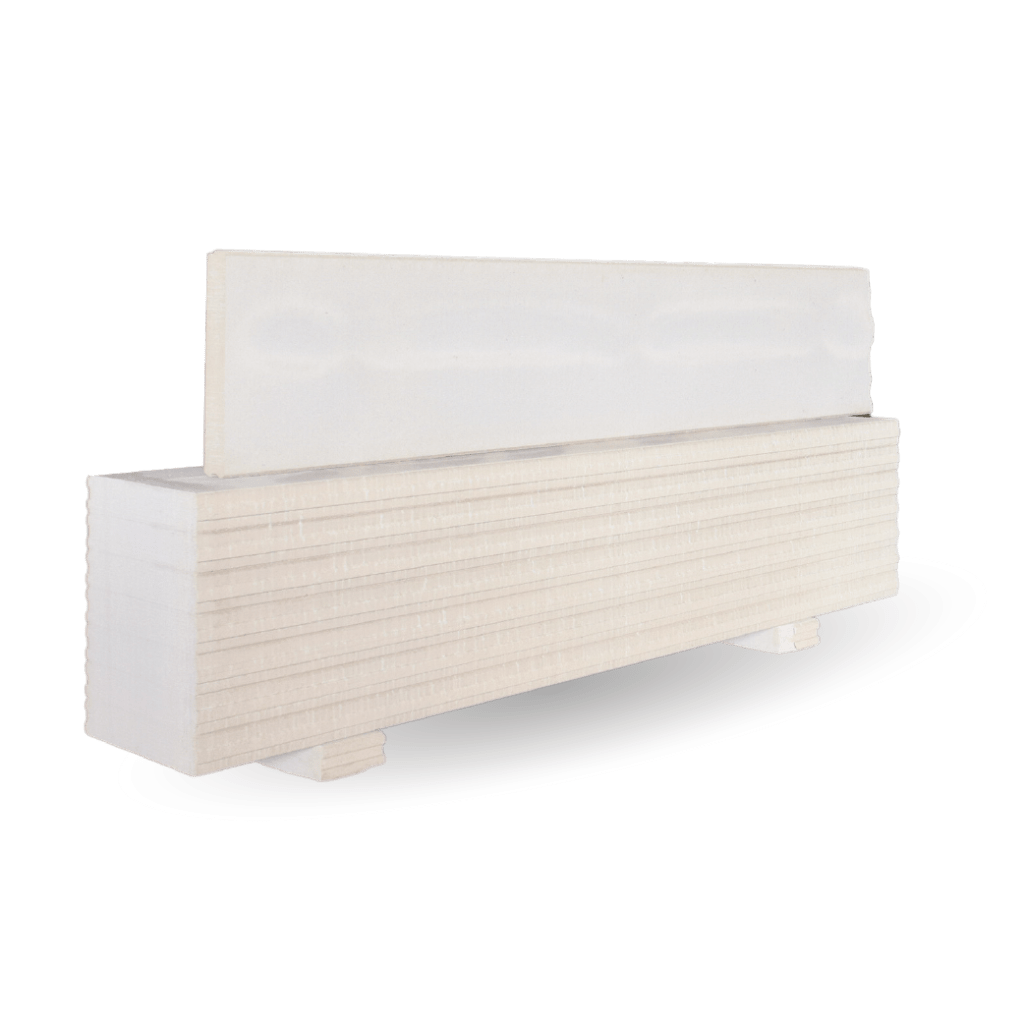

STEEL REINFORCED AAC PANELS

Dimensions in meters (L x W x T)	Wet Density	Dry Density	Compressive Strength
4.20 x 0.60 x 0.15	750kg/m3	580 to 600 kg/m3	750 psi
4.20 X 0.60 x 0.10
3.60 X 0.60 x 0.10
3.00 X 0.60 x 0.10
2.90 X 0.60 x 0.10
2.70 X 0.60 x 0.10
2.40 X 0.60 x 0.10
2.30 X 0.60 x 0.10

DR.J Autoklav

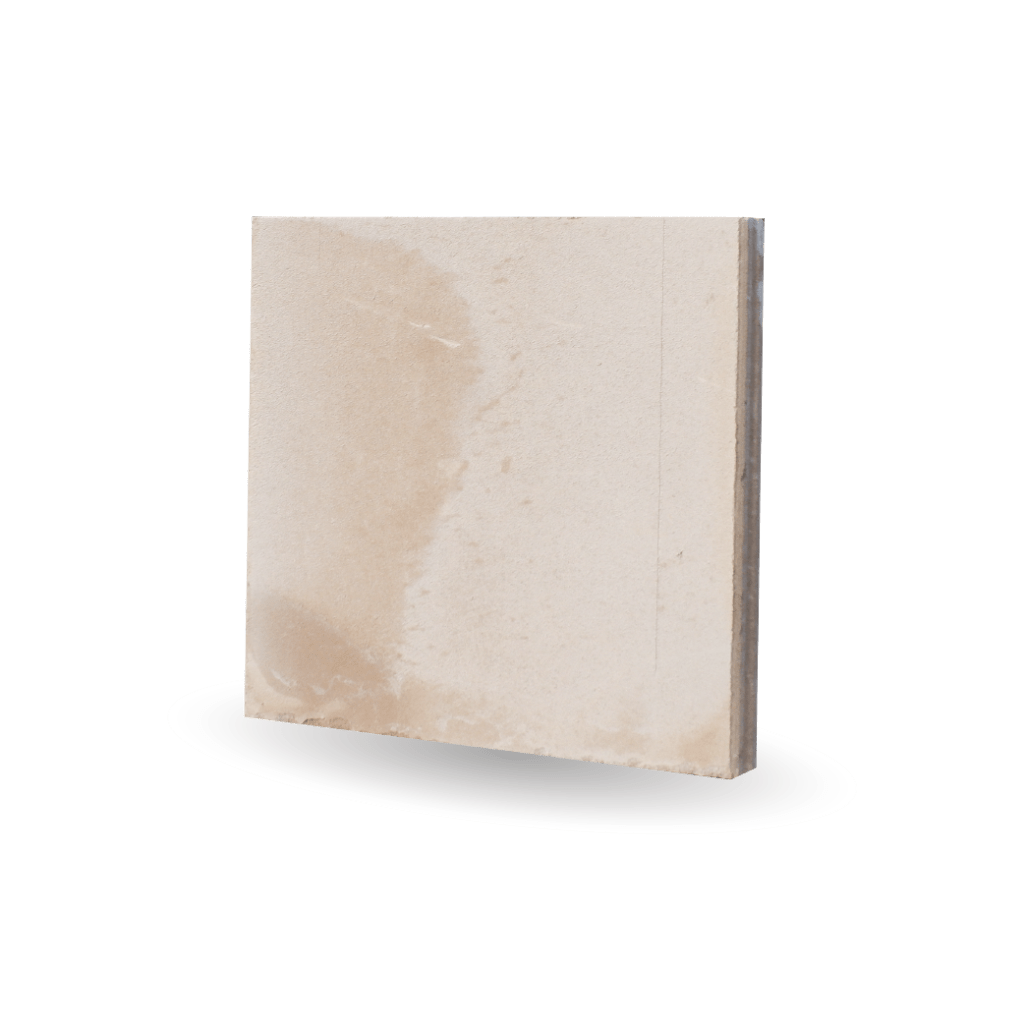

UNREINFORCED AAC BLOCKS

Dimensions in meters (L x W x T)	Wet Density	Dry Density	Compressive Strength
0.60 X 0.60 x 0.15	750kg/m3	580 to 600 kg/m3	750 psi
1.00 X 0.60 x 0.10
0.60 X 0.60 x 0.10
0.30 X 0.60 x 0.10

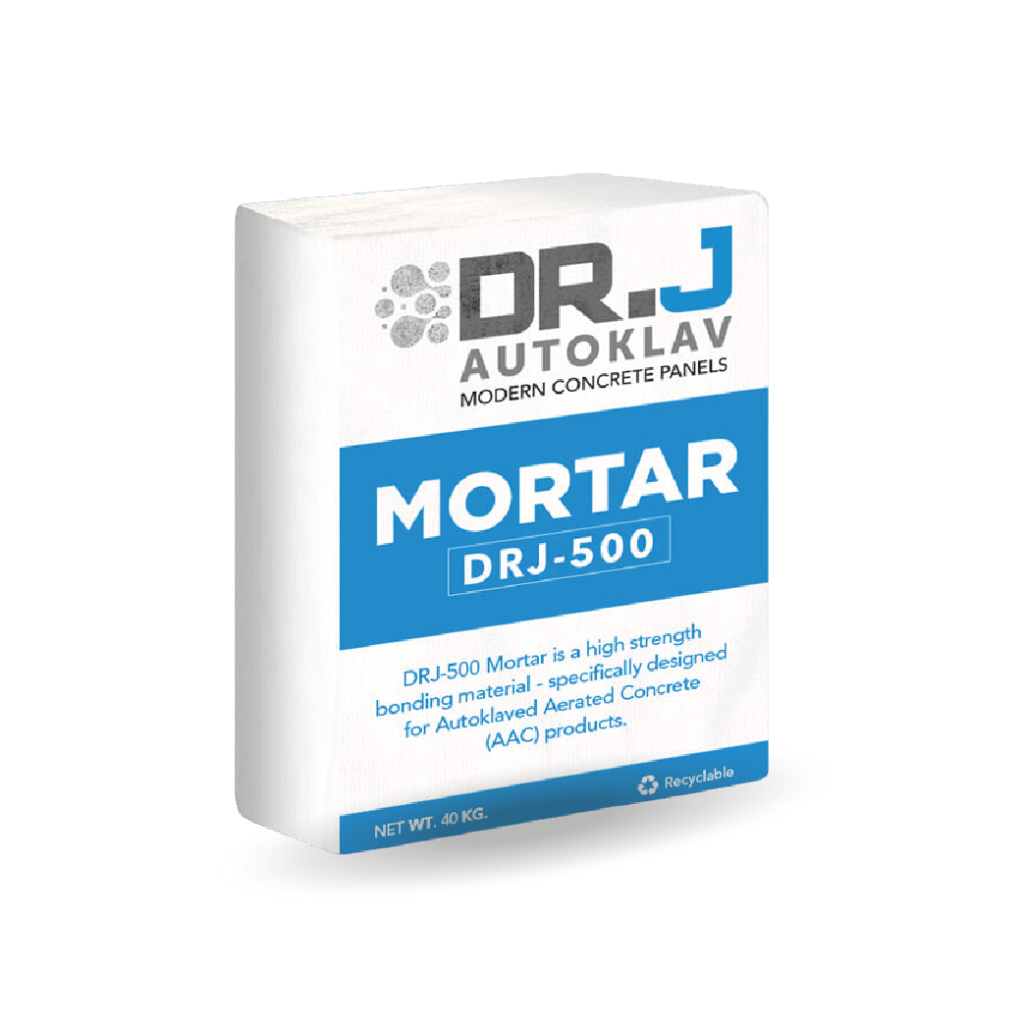

MORTAR DR.J-500

High Strength Bonding
Hard & Fast Bonding
Easy to use
Eco-friendly

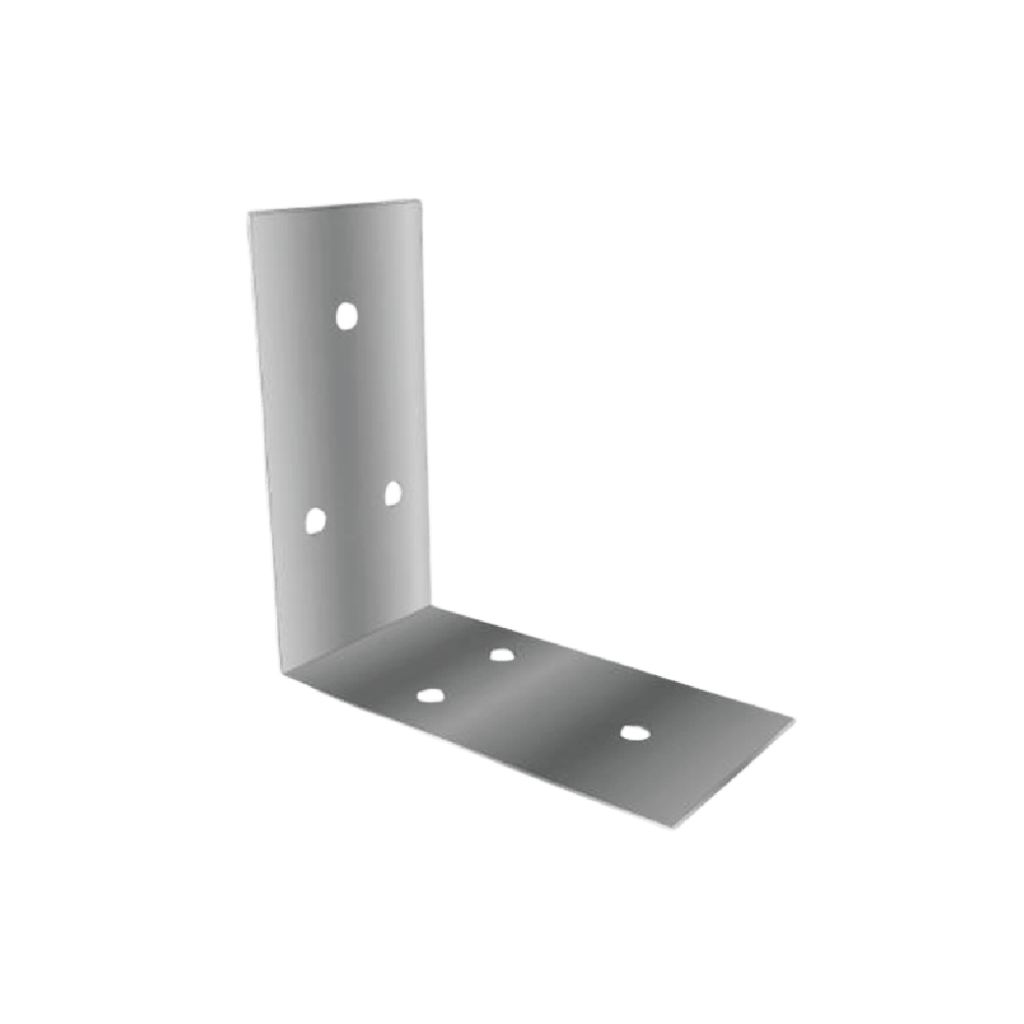

DR.J L-CONNECTOR

Connects and links blocks to the
stiffener columns and to the
main structure.

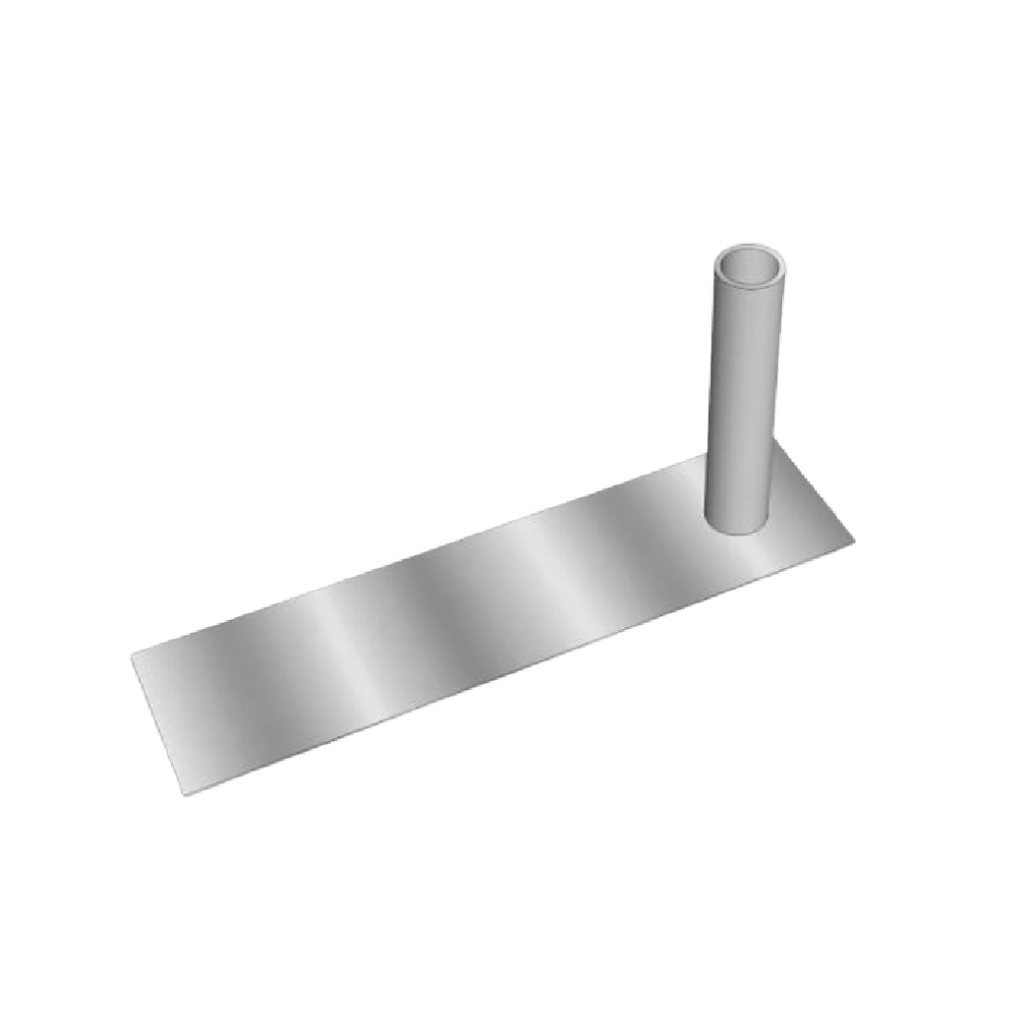

DR.J PIPE CONNECTOR

Help to support the panels upright,
both ends, top and bottom.
